Product Description

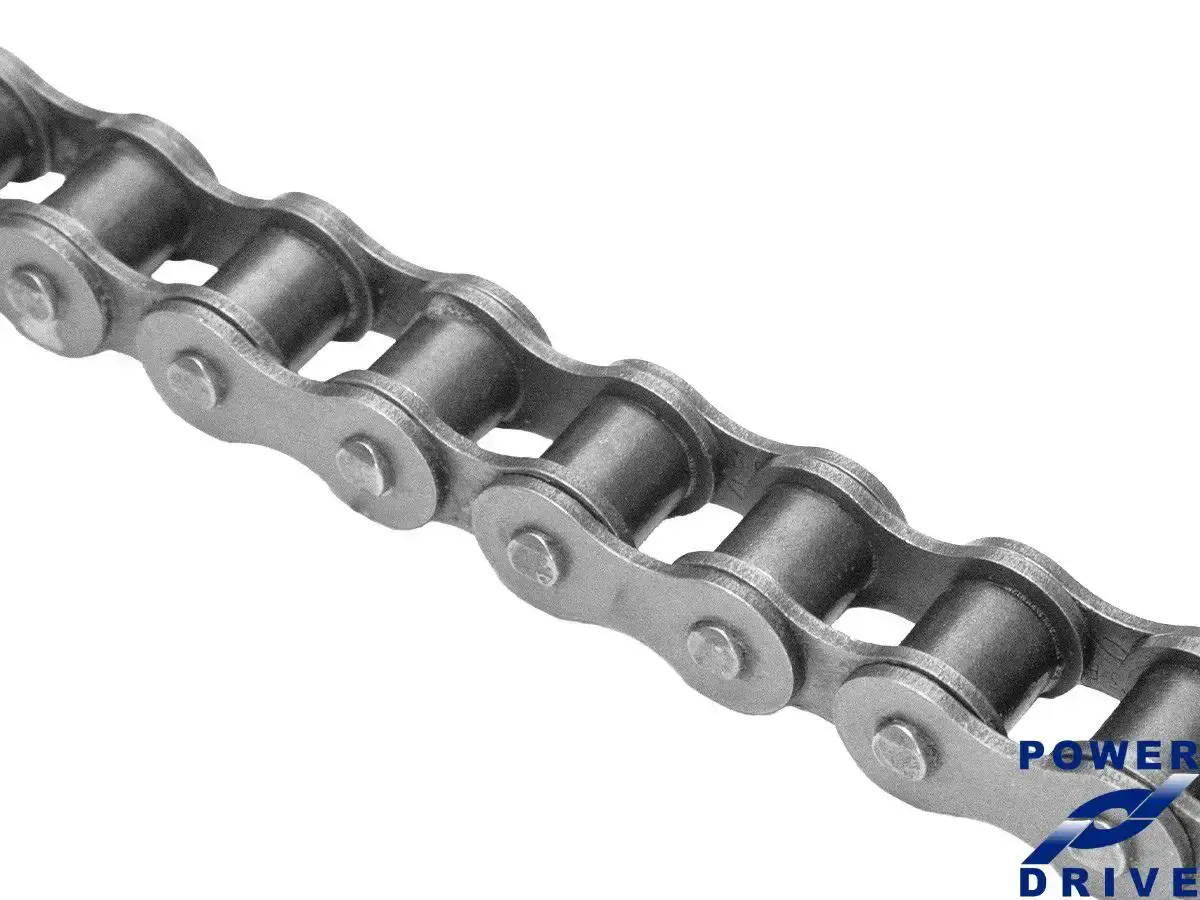

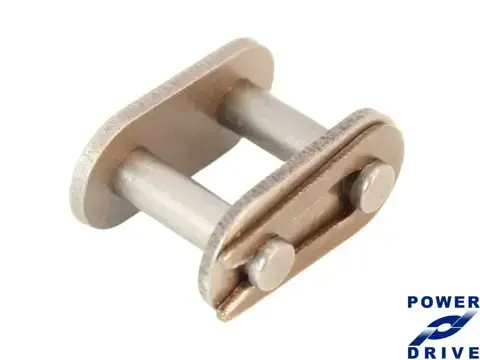

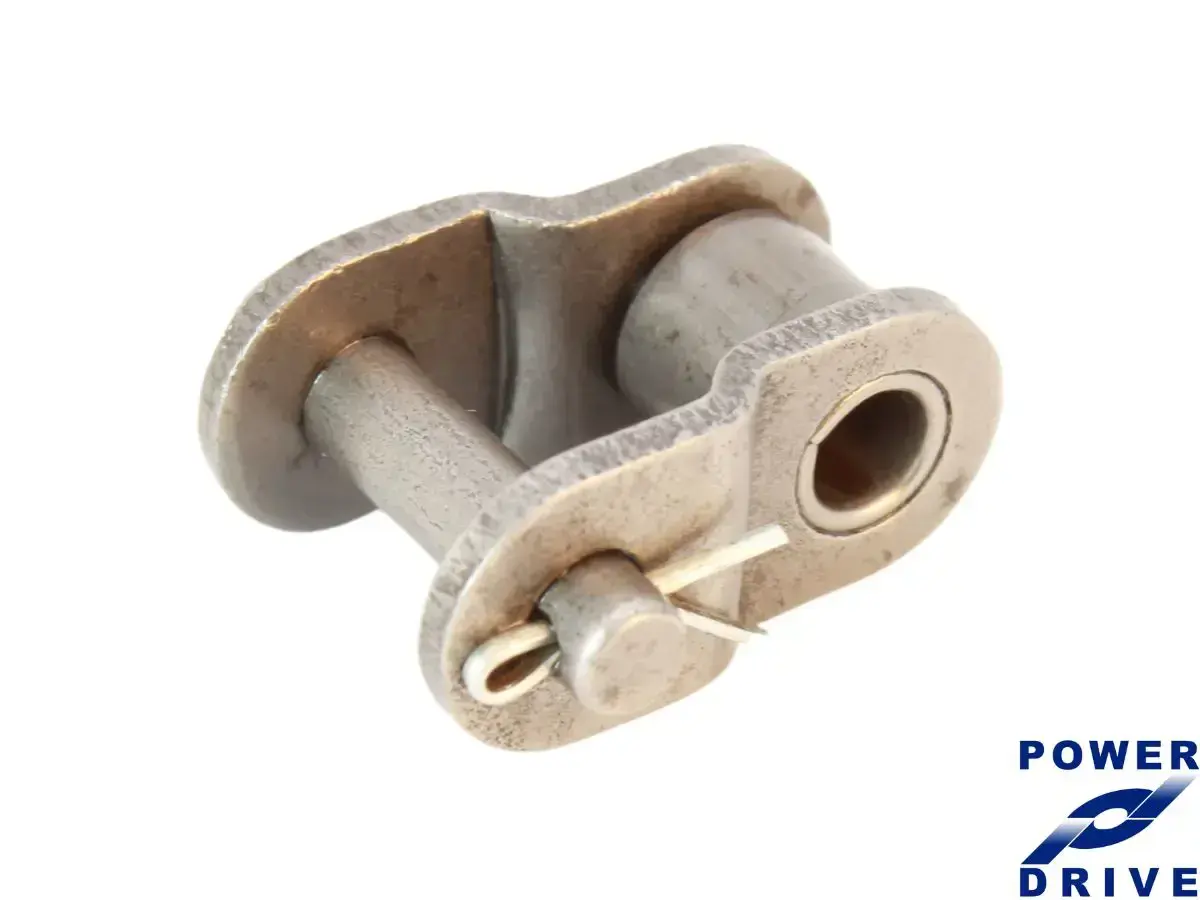

A 1 Metre Packet of good quality drive chain, complete with spring connecting link, & 1/2 link. Designed for demanding uses in Industry & Agriculture, Powerdrive chain has as standard hardened pins to prevent wear and stretch, and to ease dismantling. Additional connecting links can be found on this site.
Manufactured to BS228, ISO R606, DIN8187 and DIN8188 standards.

CH08B-1
Technical Specifications:
Unit	1Mtr
ISO/DIN Chain NO.	08B-1
Pitch (P) mm	12.7
Roller Diameter (d1 max) mm	8.51
Width between inner plates (b1min) mm	7.75
Pin Diameter (d2 max) mm	4.45
Pin Length (L max) mm	16.7
Pin Length (Lc max) mm	18.2
Inner plate depth (h2 max) mm	11.8
Plate Thickness (t/T max) mm	1.6
Weight per meter (q) kg/m	0.69
Weight per box kg	3.45

Tensile strength (Q min) kN/Ibf	18.0/4091
Average Tensile strength (Qo) kN	19.4

Specifications

Brand

POWERDRIVE

Condition

New

Product Code

08B-1-1MTR.kit

Weight

0.5kg
