Product Description

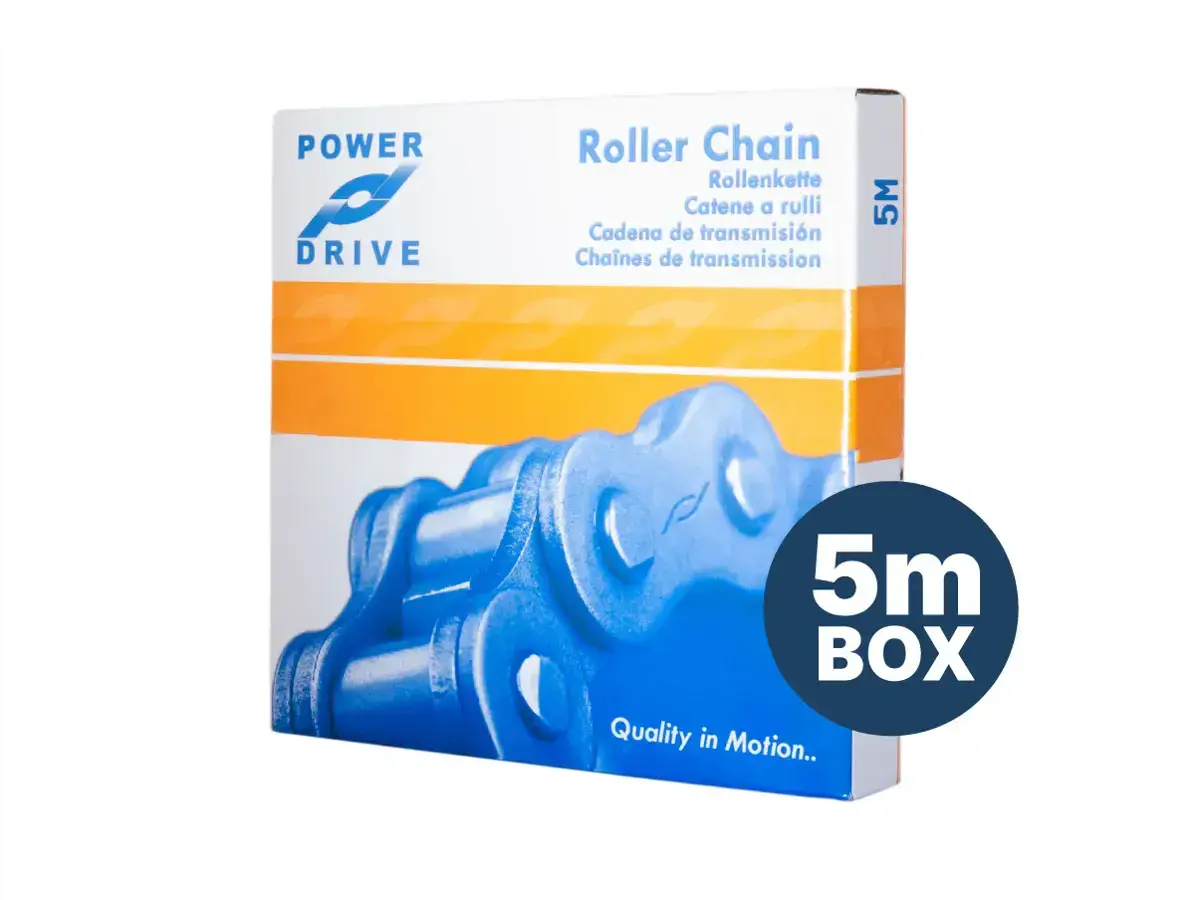

A 5 Metre (16.4 Ft) box of good quality drive chain designed for demanding uses in Industry & Agriculture, Powerdrive chain has as standard hardened pins to prevent wear and stretch, and to ease dismantling. Each box includes 1 standard connecting link. Additional connecting links can be found on this site.
Manufactured to BS228, ISO R606, DIN8187 and DIN8188 standards.

CH06B-1

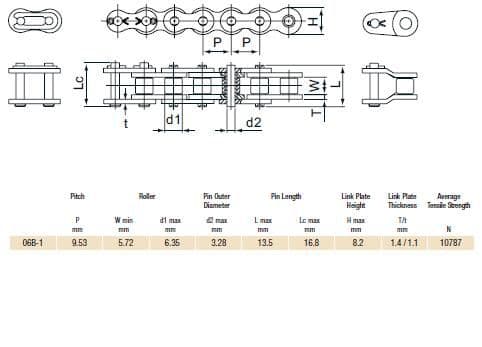

Technical Specifications:
Unit	5m Boxes
ISO/DIN Chain NO.	06B-1
Pitch (P) mm	9.525
Roller Diameter (d1 max) mm	6.35
Width between inner plates (b1min) mm	5.72
Pin Diameter (d2 max) mm	3.28
Pin Length (L max) mm	13.15
Pin Length (Lc max) mm	14.1
Inner plate depth (h2 max) mm	8.2
Plate Thickness (t/T max) mm	1.3
Weight per meter (q) kg/m	0.41
Weight per box kg	2.05

Tensile strength (Q min) kN/Ibf	9.0/2045
Average Tensile strength (Qo) kN	10.4

Specifications

Brand

POWERDRIVE

Condition

New

Product Code

06B-1 CHAIN

Weight

2.2kg
