Product Description

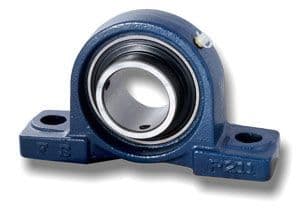

A complete sealed bearing and cast iron housing unit, One of the most economical and common bearings used in many machinery applications, that fits onto a 28.57mm shaft, secured by 2 grub screws. It has a base plate length of 160mm, and a base width of 44mm. The distance from base to shaft centre is 42.9mm, with the distance through the bore of 38.1 mm. Overall height of the unit is 82mm. The bearing used within the assembly is UC206-18 and the casting has the part no. P206 The centre distance of the mounting bolts is approx 121mm. With elongated holes for ease of fit. The picture shown is for reference purposes and may not be actual bearing or colour supplied. This unit may also be referred to or searched for as: NP1.1/8
Choose below from either standard range or premium high quality brands primarily stocked in NTN/SNR etc.
Delivery & Returns
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed feugiat sem id nunc finibus, et facilisis dolor aliquam. Donec ex felis, scelerisque ut facilisis et, convallis nec magna. Nulla vel ex eget lacus imperdiet mattis convallis quis leo. Mauris laoreet vulputate mauris. Vestibulum in blandit enim. Vivamus consectetur mattis dapibus. Nullam ultricies malesuada dignissim.
UCP206-18 1.1/8'' (28.57mm) BORE 2 BOLT PILLOW BLOCK
Product Code UCP206-18
RRP: £0.00
£14.59
£17.51
(inc. VAT)
