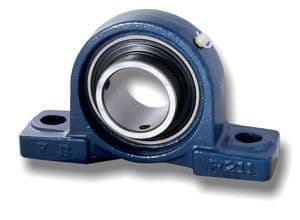

UCP207 - 35mm BORE 2 BOLT PILLOW BLOCK

Product Description

A complete sealed bearing and cast iron housing unit, One of the most economical and common bearings used in many machinery applications, that fits onto a 35mm shaft, secured by 2 grub screws. It has a base plate length of 167mm, and a base width of 48mm. The distance from base to shaft centre is 47.6mm, with the distance through the bore of 42.9 mm. Overall height of the unit is 92mm. The bearing used within the assembly is UC207 and the casting has the part no. P207 The centre distance of the mounting bolts is approx 126mm. With elongated holes for ease of fit. The picture shown is for reference purposes and may not be actual bearing or colour supplied. This unit may also be referred to or searched for as: NP35

Choose below from either standard range or premium high quality brands primarily stocked in NTN/SNR etc.

Specifications

Shaft size
35mm
Condition
New
Product Code
UCP207
Weight
1.53kg

UCP207 - 35mm BORE 2 BOLT PILLOW BLOCK

Product Code UCP207
