Product Description

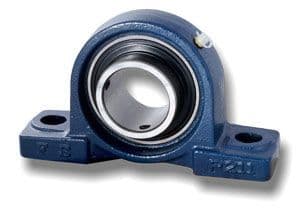

A complete sealed bearing and cast iron housing unit, One of the most economical and common bearings used in many machinery applications, that fits onto a 28.57mm shaft, secured by 2 grub screws. It has a base plate length of 175mm, and a base width of 54mm. The distance from base to shaft centre is 47.6mm, with the distance through the bore of 42.9 mm. Overall height of the unit is 93mm. The bearing used within the assembly is UCX06-18 and the casting has the part no. PX06 The centre distance of the mounting bolts is approx 127mm. With elongated holes for ease of fit. The picture shown is for reference purposes and may not be actual bearing or colour supplied. This unit may also be referred to or searched for as: MP1.1/8
Choose below from either standard range or premium high quality brands primarily stocked in NTN/SNR etc.
Delivery & Returns
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed feugiat sem id nunc finibus, et facilisis dolor aliquam. Donec ex felis, scelerisque ut facilisis et, convallis nec magna. Nulla vel ex eget lacus imperdiet mattis convallis quis leo. Mauris laoreet vulputate mauris. Vestibulum in blandit enim. Vivamus consectetur mattis dapibus. Nullam ultricies malesuada dignissim.
UCPX06-18 1.1/8'' (28.57mm) BORE 2 BOLT HEAVY DUTY PILLOW BLOCK
Product Code UCPX06-18
